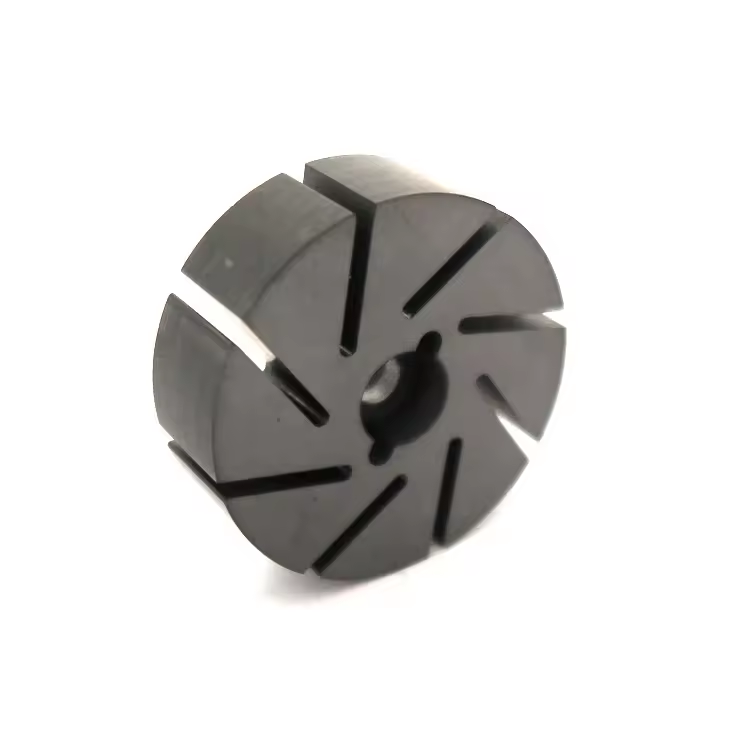

An impeller is the part of a pump that actually moves the fluid. It spins, creates flow, and generates pressure. Most impellers are made from metal, plastic, or composite materials. In benign service, those materials perform well. In corrosive, high-temperature, or contamination-sensitive service, they fail. That is where graphite impellers come in.
The industries that rely on graphite impellers are not glamorous. Chemical manufacturing, pharmaceutical synthesis, electroplating, water treatment, and flue gas desulfurization are all sectors where the process fluid would destroy a standard impeller in weeks or even days. Hydrochloric acid, sulfuric acid, hydrofluoric acid, and hot caustic solutions all attack metals. Elevated temperatures soften or deform plastics. Contamination from metal ions is unacceptable in pharmaceutical and semiconductor applications. Graphite handles all of these conditions simultaneously, which is why it remains the material of choice in these niches.
What Makes Graphite Different
Graphite is one of the two crystalline forms of carbon. Its structure consists of flat hexagonal sheets that slide easily over one another, which gives it lubricity and makes it useful in bearings and seals. The delocalized electrons within those sheets make it an excellent conductor of electricity and heat. Unlike metals, graphite does not melt at high temperatures. It sublimes, transitioning directly from solid to gas at around 3,650 degrees Celsius. In practice, this means graphite components can operate at temperatures where metals would fail.
Graphite also resists thermal shock. A metal component that goes from room temperature to several hundred degrees in seconds may crack or warp. Graphite handles that transition without issue. And graphite resists attack by most acids and alkalis, including hydrofluoric acid, which dissolves glass and attacks many metals. This combination of properties is rare, and it explains why graphite impeller are specified in applications where other materials simply cannot perform.
The Manufacturing Process
Graphite impellers are not molded or cast. They are machined from graphite blanks using carbide or diamond tooling. The machining process is slow and precise because graphite is abrasive and wears standard tooling quickly. The impeller’s geometry, including blade angle, diameter, and surface finish, determines the pump’s performance. Small deviations in dimensions can affect flow rate, head pressure, and efficiency.
The graphite grade is selected based on the application. Fine-grain, high-density graphite is used where strength and precision matter. Coarser grades are used where thermal shock resistance is more important. Some impellers are impregnated with resin to seal porosity and prevent fluid penetration. Others are impregnated with metal, such as antimony or copper, to improve strength and thermal conductivity.
Balancing is critical. An unbalanced impeller vibrates, wears bearings prematurely, and eventually fails. After machining, graphite impellers are balanced to the tolerance required for the intended operating speed. This step is not optional, especially for high-speed applications.
Selecting the Right Impeller
Selecting a graphite impeller begins with the fluid. Its chemical composition determines whether graphite is compatible and what grade is required. Its temperature determines the operating limits. Its solids content and viscosity determine the impeller design. A fluid with abrasive particles requires a different impeller geometry than a clean fluid, and the wear rate will be higher.
The operating conditions come next. Flow rate, head pressure, and rotational speed determine the impeller geometry and the strength required. Higher speeds demand higher-strength graphite and more precise balancing. Higher pressures demand more robust designs and more careful attention to tolerances.
The pump or mixer itself is the third consideration. The impeller must fit the shaft, mate with the housing, and be compatible with seals and bearings. Dimensional tolerances matter. A graphite impeller that does not fit properly will not perform, regardless of the material quality.
Finally, the supplier matters. Graphite impellers are custom components, not catalog items. The supplier must be able to machine to tight tolerances, balance the finished part, and provide documentation of material properties and dimensional inspection. For critical service, the supplier should also be able to provide performance data and references from similar applications.
Maintenance and Replacement
Graphite impellers wear over time. In clean fluids, wear is slow and the impeller may last for years. In abrasive slurries, wear is faster and replacement intervals are shorter. The wear rate depends on the fluid, the operating conditions, and the graphite grade.
Inspection is the key to avoiding unexpected failures. Impellers should be checked periodically for erosion, cracking, and loss of balance. Any impeller showing significant wear should be replaced before it fails and damages other components. Keeping a spare on hand is prudent for critical service, because lead times for custom graphite components can be weeks.
The Bottom Line
A graphite impeller is a specialized component for a specialized job. It is not the right answer for every pump or mixer. But when the fluid is corrosive, the temperature is high, and contamination is unacceptable, graphite is often the only material that works. For engineers and operators who face those conditions, understanding what graphite impellers can do, how they are made, and how to select and maintain them is essential to keeping processes running reliably. The graphite impeller may not be visible, but it is often the reason the process works at all.
