Stamping for consumer electronics is not the same as stamping for automotive or industrial applications. The differences shape every aspect of the manufacturing process.

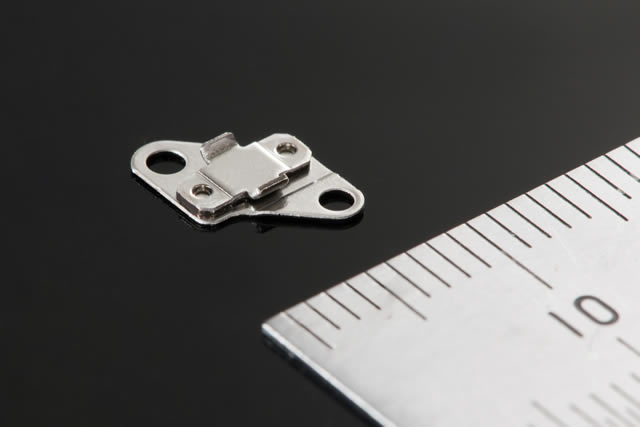

The first difference is size. Consumer electronics parts are small. A connector terminal may be a few millimeters long. A shield may be the size of a fingernail. A contact may be thinner than a human hair. Handling and processing these tiny parts requires specialized equipment and expertise.
The second difference is tolerance. Consumer electronics demand precision. A connector that is a few microns out of specification will not mate properly. A shield that does not fit precisely will not provide adequate electromagnetic interference protection.
The third difference is volume. Consumer electronics are produced in millions of units per year. The stamping tools must be designed for high-speed, continuous operation.
The fourth difference is material. Consumer electronics stampings are often made from copper alloys, stainless steel, aluminum, and specialty alloys that offer specific electrical, thermal, or magnetic properties.
The fifth difference is speed to market. Consumer electronics product cycles are short. New products are introduced frequently. The stamping supplier must be able to move quickly from design to production.
The Common Types of Stamped Components
Consumer electronics stamping parts fall into several broad categories, each with its own function and requirements.
Connectors and terminals are the most common type. They are used to transmit signals and power between components. They are made from copper alloys with high conductivity and are often plated with gold, silver, or tin to prevent corrosion and ensure reliable contact.
Shields and cans are used to protect sensitive components from electromagnetic interference. They are made from conductive metals such as copper, aluminum, or steel and are designed to block or absorb electromagnetic radiation.
Contacts and springs are used in switches, buttons, and connectors. They are made from materials with good spring properties and are designed to maintain consistent force over many cycles.
Brackets and frames are used to mount and support components. They are made from steel or aluminum and are designed for strength and rigidity.
Heat sinks are used to dissipate heat from power-hungry components. They are made from aluminum or copper and are designed to maximize surface area for heat transfer.
Battery tabs and connectors are used to connect battery cells to the device’s power management system. They are made from nickel-plated steel or copper and are designed for low resistance and high current capacity.
The Materials and Their Properties
The materials used in consumer electronics stamping parts are selected for their electrical, thermal, and mechanical properties.
Copper and copper alloys are the most common materials for connectors, terminals, and contacts. Copper offers excellent electrical and thermal conductivity. Alloys such as brass, phosphor bronze, and beryllium copper offer improved strength and spring properties.
Aluminum is used for heat sinks, frames, and housings. It is lightweight and has good thermal conductivity.
Stainless steel is used for shields, brackets, and structural components. It offers corrosion resistance and strength.
Nickel and nickel alloys are used for battery tabs and connectors. Nickel offers good corrosion resistance and electrical conductivity.
Precious metals such as gold, silver, and palladium are used as plating materials on connectors and contacts. They provide low contact resistance and resistance to corrosion.
The Manufacturing Process
Consumer electronics stamping parts are produced through several processes, each suited to different part geometries and production volumes.
Progressive die stamping is the most common method for high-volume production. The metal strip is fed through a series of stations, each performing a specific operation. The finished part emerges at the end of the line.
Fine blanking produces parts with smooth edges and tight tolerances. It is used for parts that require high accuracy, such as connector terminals and contacts.
Etching and chemical milling are sometimes used for very thin parts or parts with complex geometries that are difficult to stamp.
Secondary operations such as plating, reeling, and assembly are often required to meet the final specifications of consumer electronics stamping parts.
The Challenges of Miniaturization
The relentless miniaturization of consumer electronics has created challenges for stamping manufacturers.
As devices become smaller, the components inside them must become smaller as well. The tolerances become tighter. The features become finer. The handling becomes more difficult.
The manufacturer must continually invest in equipment and processes to meet these demands. High-speed presses with precision controls are essential. Tooling must be designed to produce ever-smaller features. Inspection equipment must be capable of measuring dimensions that are measured in microns.
The challenge is not just technical. It is also economic. The cost of tooling and equipment increases as tolerances tighten. The manufacturer must balance the need for precision with the need for cost-effectiveness.
What to Look For in a Manufacturer
The selection of a manufacturer for consumer electronics stamping parts requires careful evaluation of several factors.
The first factor is precision. The manufacturer must have the equipment and expertise to produce parts with the tight tolerances required by consumer electronics.
The second factor is material expertise. The manufacturer must understand the properties of the materials used in consumer electronics and how they behave during stamping.
The third factor is production capacity. Consumer electronics parts are required in high volumes. The manufacturer must have the capacity and the equipment to meet the production requirements.
The fourth factor is quality systems. The manufacturer must have robust quality systems that ensure consistent quality across high-volume production runs.
The fifth factor is speed. Consumer electronics product cycles are short. The manufacturer must be able to move quickly from design to production and to respond to changes in demand.
The Bottom Line
Consumer electronics stamping parts are the hidden components inside every device you own. They are small, precise, and produced in enormous volumes. They are essential to the function of the devices that define modern life. The materials, the processes, and the quality systems all determine the performance of the final part. For engineers and buyers, understanding what these parts are, how they are made, and what to look for in a manufacturer is essential to selecting components that perform reliably in demanding applications.
